Product Detail

SMD5050, 60leds/m, 2IN1, Dual color temperature

● Tunable White LED Strip

● Self-encapsulated design offers three optional 3000-6000K white lights,CRI>80

● High quality FPC, high thermal 3M adhesive

Features

  1. 12V or 24V for option
  2. 3LED/step =50mm(12V) or 6LED/step =100mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 1631.11lm/m at 19.2W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>80
  7. One Bin Only within 3 MacAdam guarantees constant color temperature
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

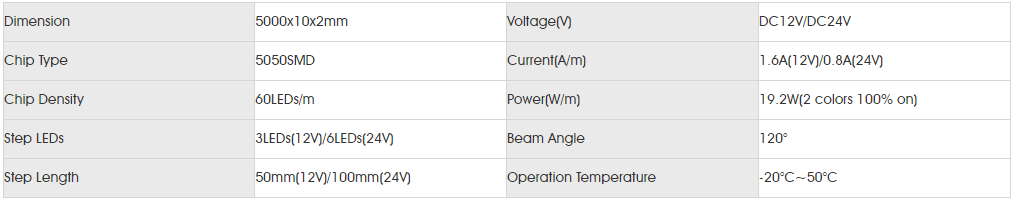

Basic Parameters

Basic Parameters for smd5050 60led dc 2in1.png

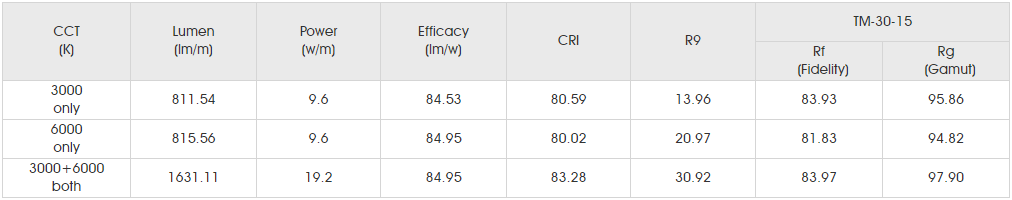

Photometrics Parameters(Data base on IP20)

Photometrics Parameters for smd5050 60led dc 2in1.png

Avaiable Colors

Available Colors for cob led strip

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
