Product Detail

SMD2835, 64leds/m, high efficiency

● High Efficiency LED Strip, luminance efficiency up to 160LM/W

● Self-encapsulated design offers six optional 2100-6000K white lights

● With life span over 36000H

Features

  1. 24V
  2. 8LED/step =125mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 1603.30lm/m at 9.6W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>80
  7. One Bin Only within 3 MacAdam guarantees constant color temperature
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

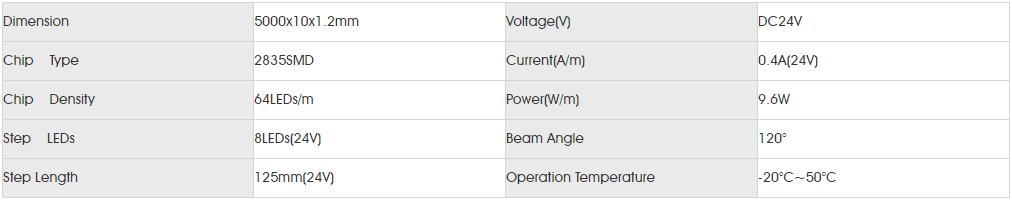

Basic Parameters

Basic Parameters for smd2835 64led HE.png

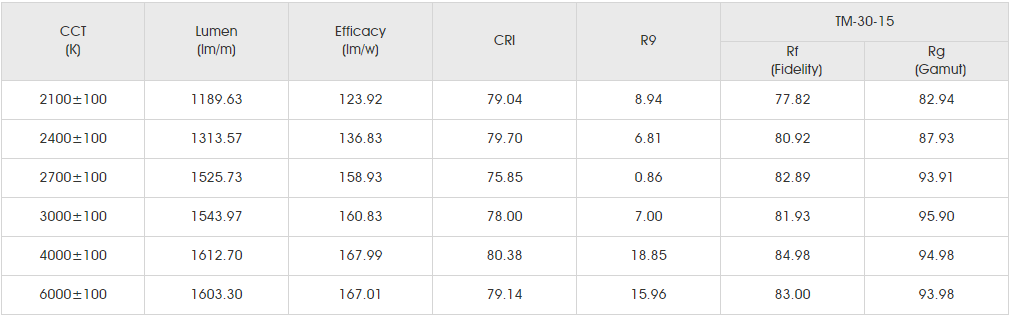

Photometrics Parameters(Data base on IP20 CRI>80)

Photometrics Parameters FOR SMD2835 64LED HE.png

Avaiable Colors

Available Colors for cob led strip

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
