Product Detail

SMD2835, 60leds/m

● Self-encapsulated design offers six optional 2100-6000K white lights and four optional R/G/B/Y colorful lights

● High quality FPC, high thermal 3M adhesive

● With life span over 36000H

Features

  1. 12V or 24V for option
  2. 3LED/step =50mm(12V) or 6LED/step =100mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 1138.20lm/m at 12W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>90
  7. One Bin Only within 3 MacAdam guarantees constant color temperature
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

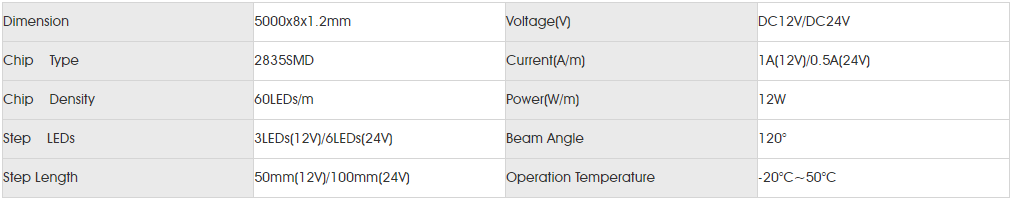

Basic Parameters

Basic Parameters for SMD3528 60LED.png

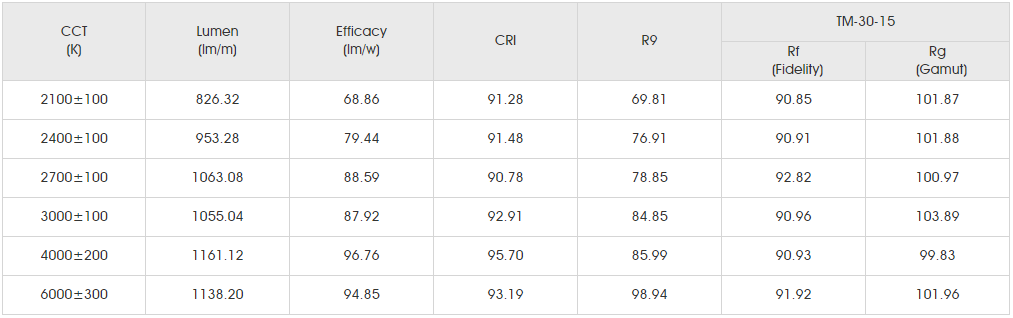

Photometrics Parameters(Data base on IP20)

Photometrics Parameters SMD2835 60LED.png

Avaiable Colors

Available Colors for cob led strip

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
