Product Detail

SMD2216, 420leds/m

● Super-dense LED distribution of 420 LEDs/m and ultra slim thickness of 1.2mm, matching profiles better

● Self-encapsulated design offers four optional 2700-6000K white lights, CRI 90

● With life span over 36000H

● Ta: -25~40°C; Tc：75°C（max）

Features

  1. 24V
  2. 6LED/step =14.28mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 2066.64lm/m at 24W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>90
  7. One Bin Only within 3 MacAdam guarantees constant color temperature
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

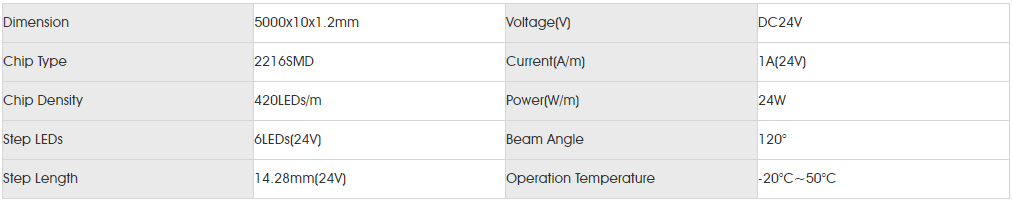

Basic Parameters

Basic Parameters for smd2216 420led.png

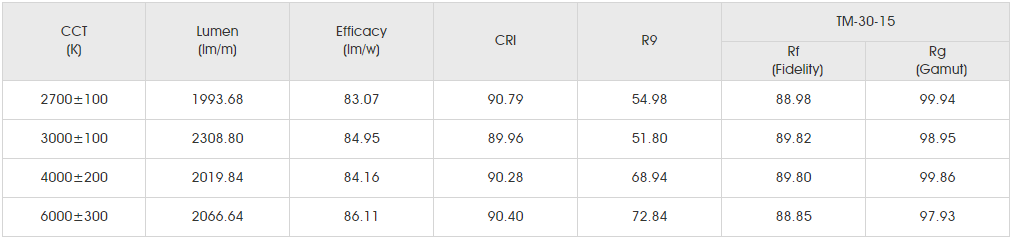

Photometrics Parameters(Data base on IP20)

Photometrics Parameters for smd2216 420led.png

Avaiable Colors

Available Colors for cob led strip

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
