Product Detail

SMD1808, 720leds/m, DC24V, 20w/m, 10mm PCB

● 1808smd led is a new led, very small, the size is only 1.8mm * 8mm

● Higher CRI, CRI/Ra of 1808smd is more than 95

● Higher efficiency, 1808smd led strip can up to 110lm/w with CRI>95

● Full CCT available, 2400K-6500K and provide 1 bin delivery.

Features

  1. 24V
  2. 6LED/step =8.34mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 1976lm/m at 20W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>95
  7. Provide 1 BIN only guarantees good color uniformity.
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

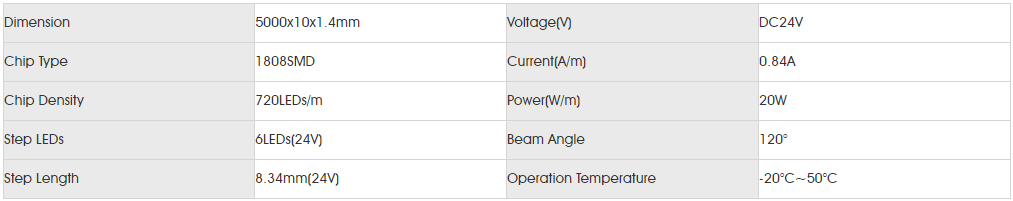

Basic Parameters

Basic Parameters for smd1808 720led 10mm.png

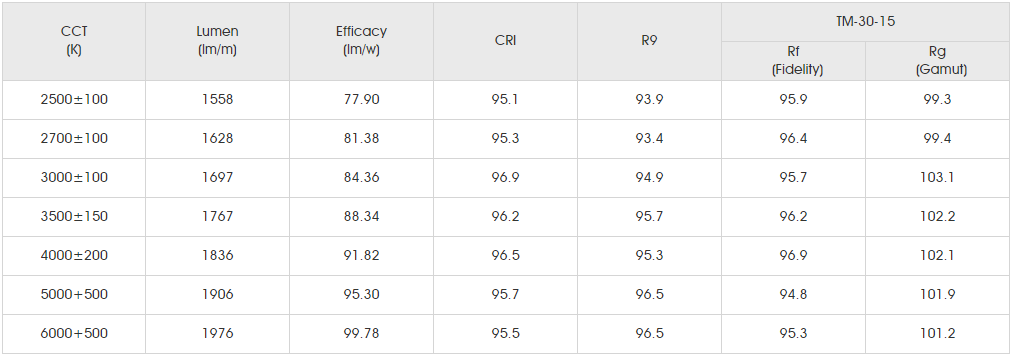

Photometrics Parameters(Data base on IP20)

Photometrics Parameters for smd1808 720led 10mm.png

Avaiable Colors

Available Colors for cob led strip

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
