Product Detail

SMD5050, 72leds/m, RGB+W

● 5050 LED with broader luminous surface

● Self-encapsulated design offers six optional 2100-6000K white lights and RGB colorful lights

● High quality FPC, high thermal 3M adhesive

Features

  1. 12V or 24V for option
  2. 6LED/step =83.4mm(12V) or 12LED/step =166.7mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 980lm/m at 17W/m
  5. 120°beam angle
  6. Very good color reproduction with CRI>90
  7. One Bin Only within 3 MacAdam guarantees constant color temperature
  8. Double-layer FPC(2Oz) for good heat dissipation.
  9. High light quality LED at a lifetime of 54,000 hours (L70).

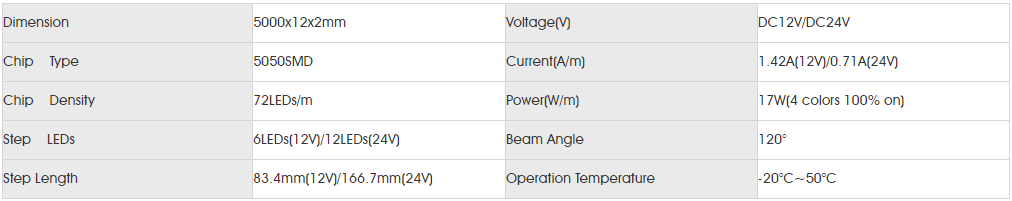

Basic Parameters

Basic Parameters for smd5050 RGB+W 72LED.png

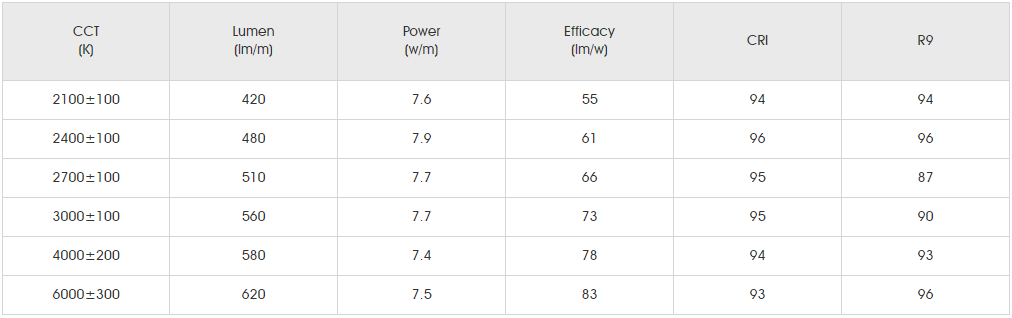

Photometrics Parameters - White Diodes only (Data base on IP20 CRI>90)

Photometrics Parameters for SMD5050 RGB+W 72LED 1.png

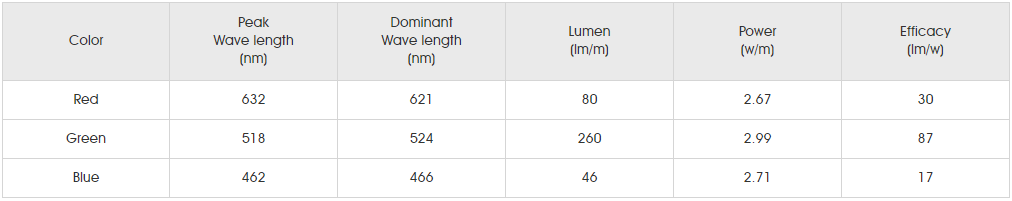

Photometrics Parameters - Red, Green and Blue Diodes (Data base on IP20)

Photometrics Parameters for SMD5050 RGB+W 72LED 2.png

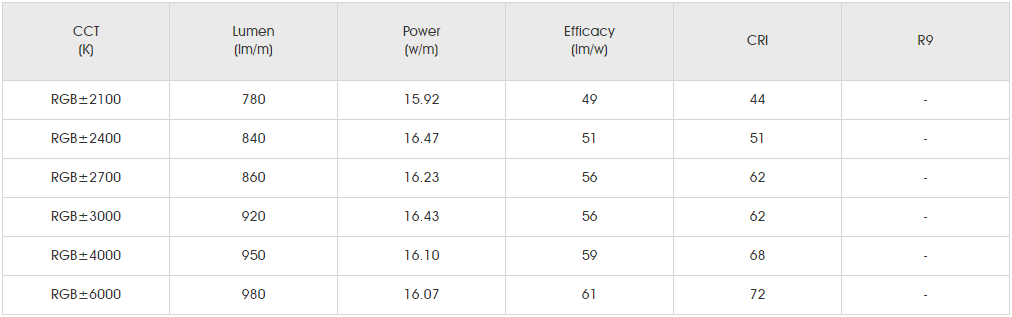

Photometrics Parameters - All Four color at 100% on (Data base on IP20 CRI>90)

Photometrics Parameters for SMD5050 RGB+W 72LED 3.png

Avaiable Colors

RGBW COLOR.png

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
