Product Detail

SMD5050, 60leds/m, RGB+Tunable White, 5IN1

● RGB + Tunable White Strip

● Five-in-one LED design offers more uniform lights

● Available for showing 65,536 colors at most

● High quality FPC, high thermal 3M adhesive

Features

  1. 24V
  2. 6LED/step =100mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 1101.2lm/m at 19.2W/m
  5. 120°beam angle
  6. Double-layer FPC(2Oz) for good heat dissipation.
  7. High light quality LED at a lifetime of 54,000 hours (L70).

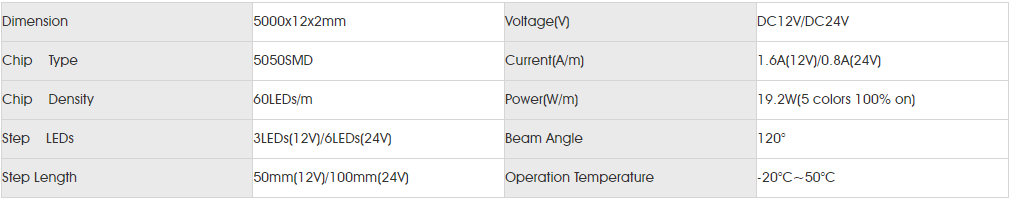

Basic Parameters

Basic Parameters for smd5050 RGBWW 60LED.png

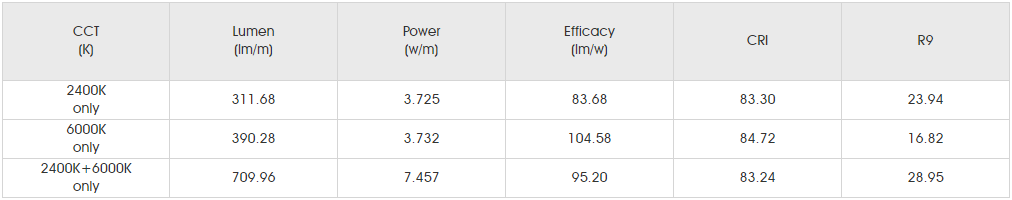

Photometrics Parameters - White Diodes only (Data base on IP20 CRI>90)

Photometrics Parameters for SMD5050 RGBWW 60LED 1.png

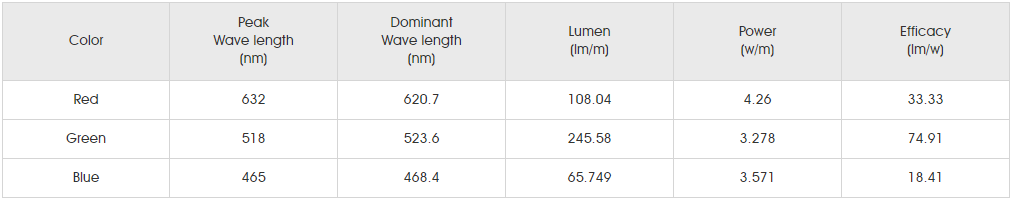

Photometrics Parameters - Red, Green and Blue Diodes (Data base on IP20)

Photometrics Parameters for SMD5050 RGBWW 60LED 2.png

Photometrics Parameters - All Four color at 100% on (Data base on IP20 CRI>90)

Photometrics Parameters for SMD5050 RGBWW 60LED 3.png

Avaiable Colors

RGBW COLOR.png

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
