Product Detail

DMX512, SMD5050, 60leds/m, RGB

● DMX512 RGB LED Strip

● DMX512 signal directly input, no need decoder

● High quality FPC, high thermal 3M adhesive

Features

  1. 24V
  2. 6LED/step =100mm(24V)
  3. with 3M adhesive tape on the back for easy installed
  4. 14.4W/m
  5. 120°beam angle
  6. Double-layer FPC(2Oz) for good heat dissipation.
  7. High light quality LED at a lifetime of 54,000 hours (L70).

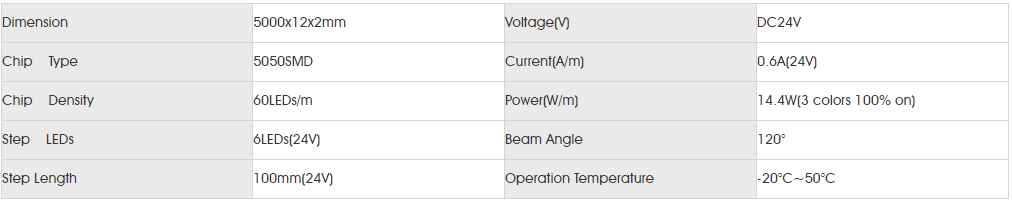

Basic Parameters

Basic Parameters for smd5050 RGB dmx 60LED.png

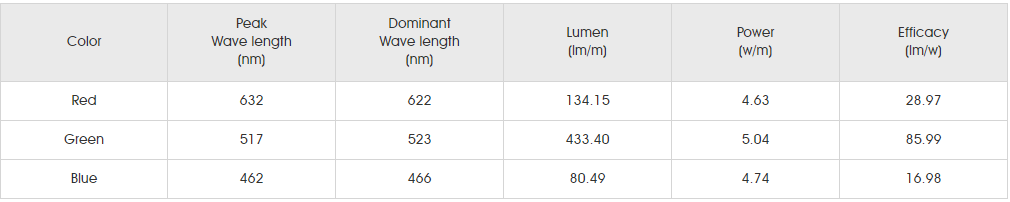

Photometrics Parameters - Red, Green and Blue Diodes (Data base on IP20)

Photometrics Parameters for SMD5050 RGB DMX 60LED 1.png

Photometrics Parameters - All Red, Green and Blue color at 100% on (Data base on IP20)

Photometrics Parameters for SMD5050 RGB DMX 60LED 2.png

Avaiable Colors

RGB COLOR.png

Available IP Grades

Available IP Grades

Application

Decorative illumination of ceilings, niches, walls, steps.

Ceiling backlight.

Advertising boxes, letters and signboards illumination.

Creation lighting by using aluminium profifiles.
